• Professional Pillow Peanut Candy Packing Machine with High Speed
  • 2019 New Type Peanut Candy Packing Machine China Manufacturer
  • Low Price Pillow Peanut Candy Packing Machine in Plant

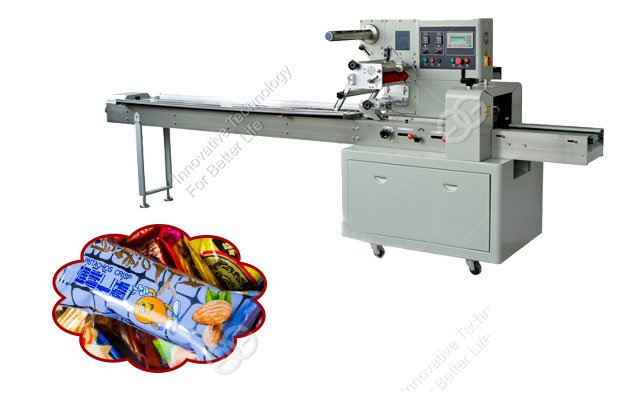

China Pillow Peanut Candy Packing Machine High Speed 230 bag/min

  • MOQ:1 /Sets
  • Supply Ability: 200 Sets Per Month
  • Loading Port:Shanghai Port/Qingdao Port
  • Certification: CE
  • Pay Method: West Union L/C T/T Cash
  • Package: Wooden Packaging for Export Standard

Features

This pillow peanut candy packing machine is a continuous packer that is used to package a variety of snacks. The packaging speed is fast and packed peanut brittle is perfect, so the packaging machine is popular in China and other counties. The utility model mainly comprises a conveying mechanism, a driving film feeding mechanism, a photoelectric switch, a bag making device, etc.
Hot Sale of Pillow Vacuum Packing Machine in Plant

Application of Pillow Peanut Candy Packing Machine:
The packaging machine can automatically complete five processes of bag making, filling, sealing, cutting, and finished product elimination. In actual life, it can realize the flow packaging of automatic production lines in daily chemical, pharmaceutical and food such as peanut candy,sesame brittle and so on.

Working Principle of Peanut Candy Packing Machine China:
At first, after the start-up is fast, the wrapping film enters the former through the packaging film driving roller.
Secondly, the forming package, the packaged material is fed into the former by the feeding conveyor, and then longitudinally sealed and laterally sealed in both directions.
Finally, it is output by the discharge output machine.
 Professional Pillow Vacuum Packing Machine Manufacturer
Structural Features of Peanut Candy Packing Machine Pillow Type:
1. Has high speed in packaging and package continuously from 30 to 230 bags in one minute.
2. Realize text-based man-machine interface, device parameter setting is quick and easy.
3. A fault self-diagnosis function, the problem immediately immediately know the cause.
4. High-sensitivity photoelectric eye color tracking, so that the sealing and cutting position is more accurate.
5. Advanced control system with unique temperature independent PID control.
6. Equipment material is stable and reliable, easy to maintain the machine.

How to operate it?
1. Perform a safety check before using the machine.
Check that there are no debris in all parts of the machine, especially conveyor belts, work benches, end seals, etc.

2. Observe after turning on the power.
The operator needs to open the electric control box door lock first, close the main circuit breaker, close the box door to observe the display indicators of the thermostats on the control panel and whether the display parameters are normal. Focus on whether the power signal light is normally displayed, whether the human-machine interface can display in normal way.

Working Video of Peanut Candy Packing Machine in China:


FAQ
1. Q: What is your guarantee for the machine?
A: Our machine warranty period is 1 year.

2. Can you arrange a technician to install the machine for us?
A: Yes, in order to facilitate the use of the machine, we will assign our engineers to go abroad to install the machine for our customers. At the same time, we also provide video, install pictures, etc. to let customers know more about the installation process.

3. Q: How many models does this pillow peanut candy packing machine have?
A: There are 10 different models of this pillow packing machine. We will recommend the machine suitable for the customer according to their needs.

4. Q:Is the packaging speed too fast to affect the packaging effect?
A:In this regard, you can believe that the quality of our machines is absolutely guaranteed in China. Even the high speed 230 bag/min, we can guarantee the final product.

Technical Data

Model GG-ZS250 GG-ZS320
Film
Width(mm)
max250 max320
Bag-making
Width(mm)
30-110 50-160
Product
Height(mm)
max40 max45
Roll film
diameter(mm)
320 320
Speed(bag/min) 40-230 40-230
Dimension(mm) 3370*670*1450 3370*720*1450
Weight(Kg) 800 900
