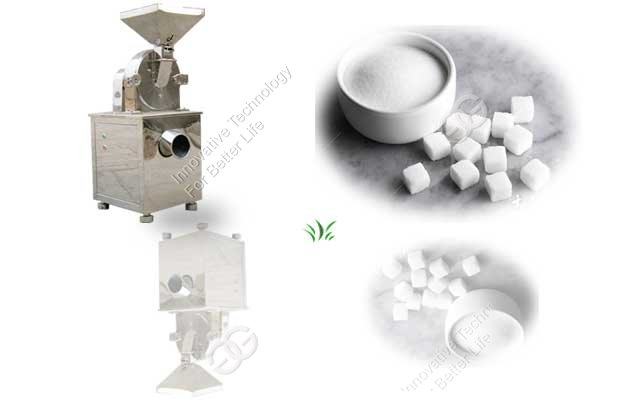

Sugar Pulverizer|Sugar Powder Making Machine

  • MOQ:1 /Sets
  • Brand:GELGOOG MACHINERY
  • Certification: CE
  • Supply Ability: 300 Set/Sets Per Month
  • Pay Method: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • Loading Port: Shanghai port/Qingdao port
  • Country Of Origin: China

Features

This sugar pulverizer machine has wide application and his wide used for pharmaceutical industry,pesticide industry foodstuff industry, grain industry and so on.

This sugar pulverizer machine used adopt relative motion between movable and fixed teeth disc.
The raw material to be crushed undertakes the comprehensive action such as impacted by teeth,friction,impacted between raw material, finally the raw materials are crushed. Its features are simple and solid in structure, stable in operation, high in crushed efficiency. The crushed raw material can be discharged through the grinding chamber.and the different size of raw material to be crushed can be got through changing screen with different mesh.

sugar pulverizer



Technical Data

Model GG--20B-C GG-30B-C GG40B-C GG60B
Capacity(kg/h) 60-150kg/h 100-300kg/h 160-800kg/h 500-1500kg/h
Revolution of spindle 4500r/min 3800r/min 3400r/min 2800r/min
Grinding size 10-200 mesh
Crusher motor 4kw 5.5kw 11kw 15kw
Cleaner motor 0.75kw
Dimension (mm) 550*600*1250 600*700*1450 800*900*1550 1000*900*1680
Weight (kg) 250 320 550 680
