Hot Selling Cube Sugar Production Line in China|Jaggery Cube Making Machine

  • MOQ:1 /Sets
  • Brand:GELGOOG MACHINERY
  • Certification: CE
  • Supply Ability: 300 Set/Sets Per Month
  • Pay Method: WEST UNION L/C T/T CASH
  • Warranty Time: 12 Months
  • Loading Port: Shanghai port/Qingdao port
  • Country Of Origin: China

Features

The cube sugar production line is mainly used for making different specifications cube sugar, and the machine can achieve automatic rotation, automatic frequency control and continuous briquetting,it is high efficiency and save manpower.

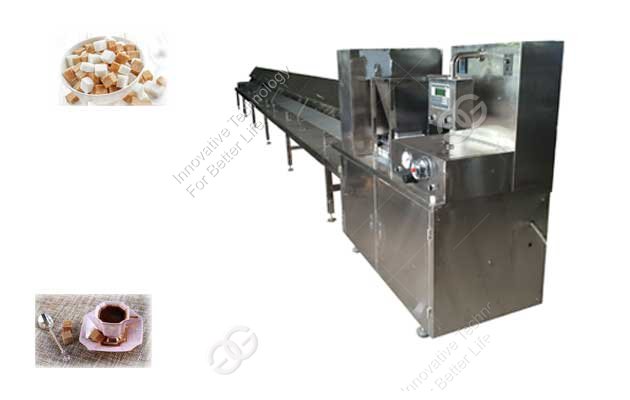

cube sugar production line
The sugar cube machine is mainly applied in the briquetting of sugar with cube shapes, the sugar has different specifications.like 16*16*13mm, 6*16*15mm, 18*18*12 and so on, besides the sugar making machine mold can be customized according to customer special requirements. The cube sugar machine that can achieve automatic rotation, automatic frequency control and continuous briquetting, continuous work, high efficiency, save manpower material resources.

Equipment List for Cube Sugar Production Line
The production line including sugar grinding machine, mixed spiral feeding machine, sugar making machine, tablet linkage conveyor, drying tunnel, cooling machine and semi-automatic sugar carton packing machine. All the machine is made of high quality stainless steel, conforms to food standards and long service life.

Advantages of Automatic Cube Sugar Production Line
1.Reliable performance, simple construction stable operation, long service life.
2.By changing the molds, this plant is able to produce various shape of high quality sugar cube such as square sugar, heart-shaped sugar and special shape sugar cube.
3.We have hydraulic type and pneumatic type cube sugar making machine for your choose.
4.High automatic, stand-alone machine can be controlled separately, simple operation and easy maintenance.
5.The plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.
6.This machine is the most advanced sugar cube equipment, with reasonable structure, smooth operation, long service life, clean rate higher characteristic.
7.We have approved by CE, ISO and SGS. They all are proves of our high quality.

There is cube sugar production line working video



Technical Data

No. Equipment Name Detailed Specifications
1 Sugar Grinder Machine GG-100
Capacity:50-100kg/h
Feed size: <5mm
Grinding fineness:12-150mesh
Motor power:2.2kw
Dimension:780*750*1500mm
Weight:250kg
2 Mixed Spiral Feeding Machine Model: GG-SG
Function: mixing and automatic feeding
Motor power: 3.85kw
Discharge port from the ground: 1700mm
Dimension: 500*500*1650mm
Weight: 140kg
3 Sugar Making Machine Model: GGF-60
Capacity:60-120kg/h
Power:3kw,380V/50Hz
Dimension:1200*600*1400mm
Weight:800kg
PLC control, man-machine interface.
4 Tablet Linkage Conveyor Model: GGS-2
Function: Linkage & Transmission
Efficiency: 0-10m3/min
Air pressure: 0.3-0.5Mpa
Dimension: 1300*700*1000mm
Weight: 60kg
5 Infrared Drying Tunnel Model: GGH-3
Efficiency: 0-10m3/min
Power: AC380V50Hz 2KW*4
Dimension: 1900*700*1150mm
Weight: 90kg*4
6 Cooler Machine Model: GGQ-1
Function: Cooling
Efficiency: 0-10m3/min
Dimension: 1900*700*700mm
Weight: 60kg
7 Semi-automatic Sugar Packing Machine Model: GG-250
Feature: infinite speed variation
Rated voltage: 220V/380V 50-60Hz
Power: 2.2kw
Maximum pressure: 36(43)Kpa
Maximum degree of vacuum: 26(31)KPA
Table: customized
Chuck handle: 2 pcs
Dimension: 650*600*950mm
Weight: 75kg
